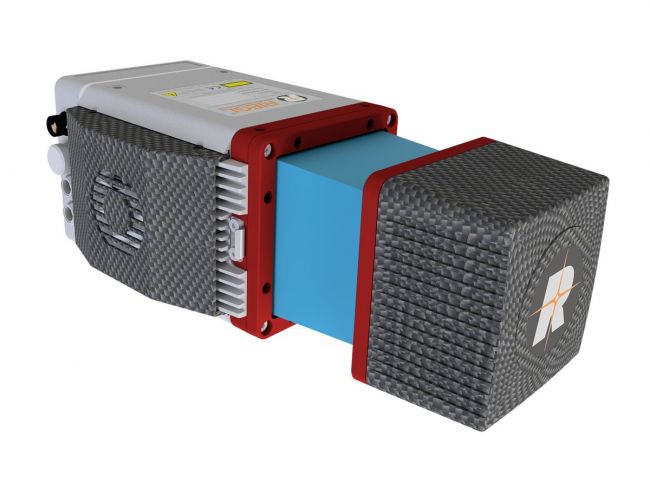

RIEGL miniVUX-3UAV is an extremely lightweight laser scanner, specially designed for integration with UAS / UAV / RPAS. The older sibling of the RIEGL miniVUX-2UAV and the RIEGL miniVUX-1UAV offer a selectable effective laser measurement rate (PRR) of 100 kHz, 200 kHz and 300 kHz. With a 300 kHz PRR, the sensor provides up to 100,000 measurements per second at 120 °.

The small and sophisticated design of the stable aluminum housing offers various possibilities for integration with platforms that offer limited space or payload capacity. The 360 ° field of view allows complete scanning of the area.

An easy-to-remove SD card for data storage and / or the option to stream scan data via the LAN-TCP / IP interface, in combination with low power consumption to the scanner, allow direct integration with most UAS / UAV / RPAS types.

RIEGL miniVUX-3UAV uses the unique RIEGL Waveform-LiDAR technology, allowing echo digitization and online waveform processing. Multi-target resolution is the basis for scanning and dense leaves. As another special feature, the wavelength is optimized pentru măsurarea terenului înzăpezit și înghețat.

In addition to the standalone version of the miniVUX-3UAV, RIEGL also offers fully integrated system solutions.

Caracteristici principale	Aplicații principale
100 kHz / 200 kHz / 300 kHz Selectable PRR laser	Agriculture and forestry
Measurement rate up to 200,000 measurements / sec	Glacier and Snowfield Mapping
Scan speed up to 100 scans/sec	Archeology and Cultural Heritage Documentation
Very compact & lightweight (1.55 kg / 3.4 lbs)	Construction-Site Monitoring
Up to 360° field-of-view	Landslide Monitoring
Robust aluminum housing, ready to be mounted on multi-rotor, rotary-wing, and fixed-wing UAVs
Makes use of RIEGL's unique echo signal digitization and online waveform processing
Multiple target capability – up to 5 target echoes per laser shot
Mechanical and electrical interface for IMU mounting
Exceptionally well suited to measure in snowy and icy terrains
User-friendly, application- and installation-oriented solutions for integration

The configuration includes:
- High precision 3D laser scanner RIEGL VUX-3UAV;
- Software licenses for raw data acquisition and processing;
- Applanix AP60 inertial navigation unit with integrated IMU / GNSS and related software;
- 12 MPx cameras;
- 360 ° camera and mounting kit;
- Control unit;
- Cables and accessories;
- 3D scanning and mapping system platform for vehicle mounting;
- Transport box.
