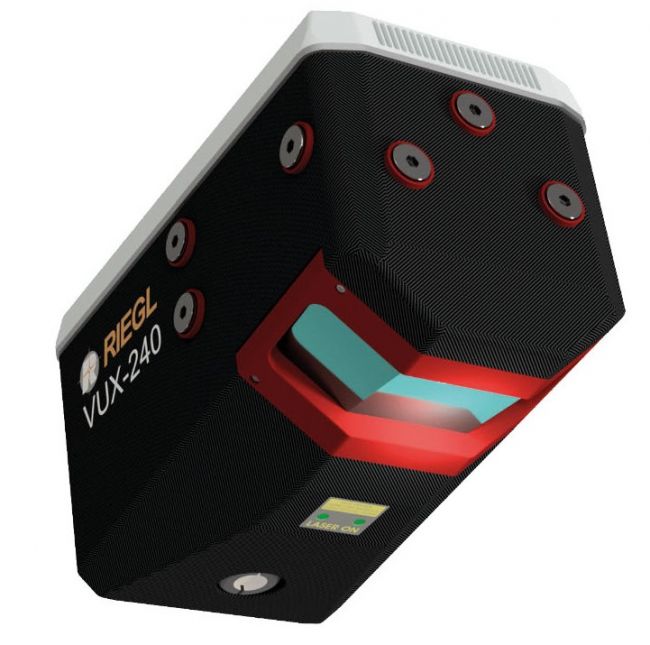

RIEGL VUX-240 is a lightweight aerial laser scanner, specially designed for use on UAS / UAV / RPAS and small aircraft or helicopters.

With a wide field of view of 75 degrees and an extremely fast data acquisition rate of up to 1.8 MHz, the tool is suitable for high-density corridor mapping applications.

Technical specifications:

- maximum range: 2150 m;

- maximum operating altitude: 1400 m;

- maximum number of targets per pulse: 15;

- minimum range: 5 m;

- accuracy: 20 mm;

- accuracy: 15 mm;

- laser pulse repetition speed: up to 1800 kHz;

- effective measurement rate: up to 1500000 measurements / second;

- laser beam divergence: 0.35 mrad;

- laser beam footprint: 35 mm @ 100 m, 175 mm @ 500 m, 350 mm @ 1000 m;

- field of view (selectable): ± 37.5 ° = 75 °;

- scan speed (selectable): up to 400 scan lines / second;

- resolution of the angle measurement: 0.001 °

The configuration includes:

- high precision 3D laser scanner RIEGL VUX-240;

- software licenses for raw data acquisition and processing;

- scanner mounting platform;

- adapter plate for mounting;

- 42 MPX camera and lenses;

- Applanix AP20 inertial navigation unit with integrated IMU / GNSS and related software;

- control unit;

- cables and accessories;

- transport box.

Main Features	Main Applications
Laser pulse repetition rate up to 1.8 MHz	Corridor mapping: power line, railway track and pipeline inspection
Measurement rate up to 1,500,000 meas./sec	Topography in open-cast mining
Scan speed up to 400 lines/second	Surveying of urban environments
Operating flight altitude up to 1,400m / 4,600 ft	Archaeology and cultural heritage documentation
Field of view up to 75°	Agriculture & forestry
Perfectly linear and parallel scan lines
Cutting edge RIEGL technology providing: echo signal digitization, multiple target capability, online waveform processing, multiple-time-around processing
Easly mountable to unmanned platforms (UAVs) and to helicopters, gyrocopters, and other small manned aircrafts
Mechanical and electrical interface for INS/GNSS integration (optional)
Interfaces for up to 4 optional cameras

Brand: RIEGL LASER MEASUREMENT SYSTEMS GMBH

Category: Aerial 3D laser scanners
